Beveling Base Spare Parts

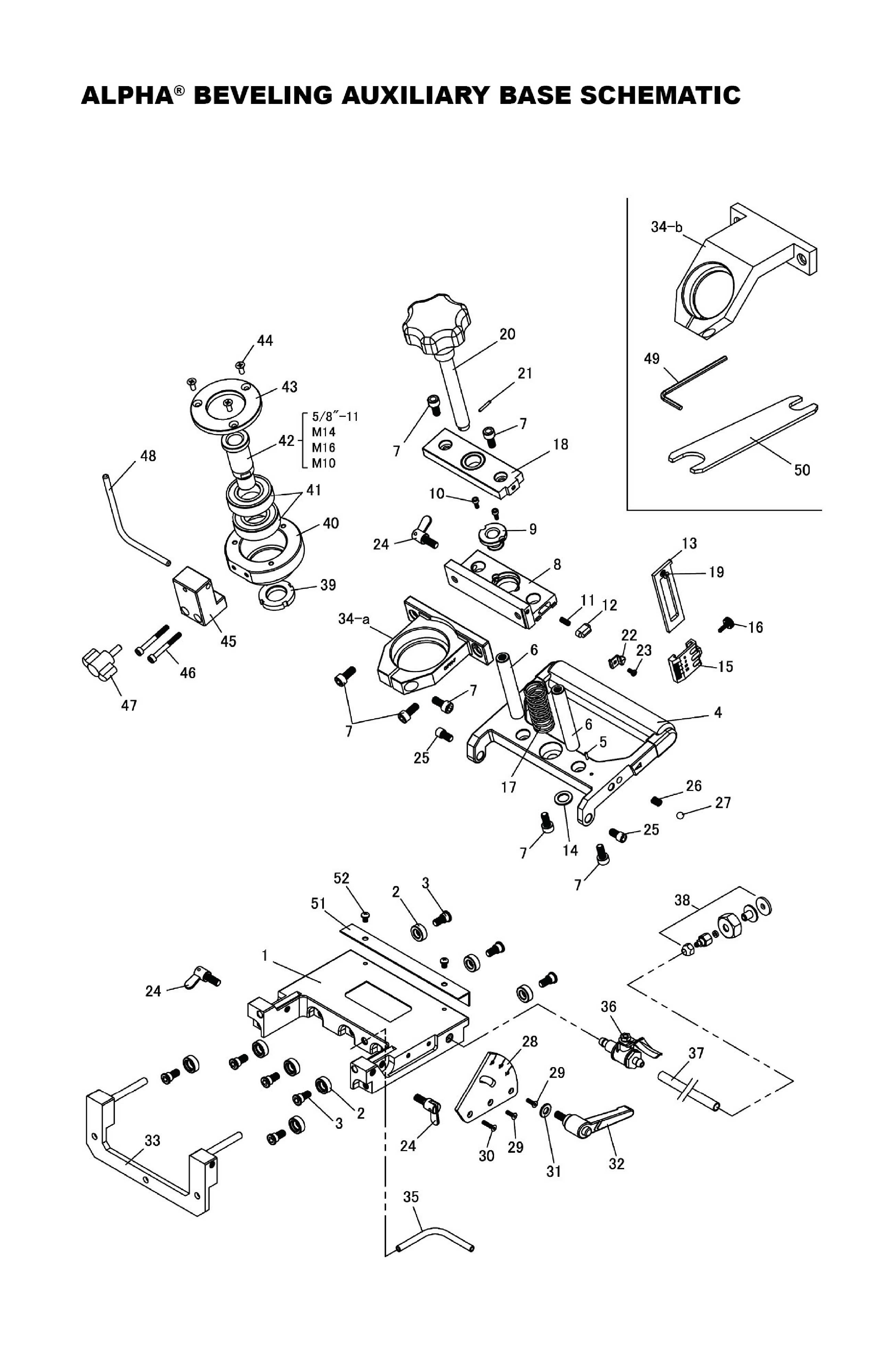

DRAWING NO.	PART NO.	VERSION	DESCRIPTION	PRICE
1	150001	1	Main Base	CALL
2	150002	1	Rolling Wheel	CALL
3	150003	1	Screw A01A10101	CALL
4	150004	1	Handle	CALL
5	150005	1	Pin P001	CALL
6	150006	1	Gliding Pin	CALL
7	150007	1	Hex. Screw CAP021	CALL
8	150008	1	Lift Base	CALL
9	150009	1	Screw A01A30100	CALL
10	150010	1	Hex. Screw CAP042	CALL
11	150011	1	Spring S064	CALL
12	150012	1	Gliding Spacer	CALL
13	150013	1	Guide Rail	CALL
14	150014	1	Washer T10x16x1.5	CALL
15	150015	1	Angular Measure	CALL
16	150016	1	Fixing Bolt	CALL
17	150017	1	Spring S074	CALL
18	150018	1	Bolt Base Assembly	CALL
19	150019	1	Screw MT005	CALL
20	150020	1	Bolt Assembly	CALL
21	150021	1	Spring Pin	CALL
22	150022	1	Indicator	CALL
23	150023	1	Screw MC006	CALL
24	150024	1	Screw MP6X14	CALL
25	150025	1	Fixing Screw	CALL
26	150026	1	Spring S070	CALL
27	150027	1	Steel Ball	CALL
28	150028	1	Angular Table	CALL
29	150029	1	Screw MT008	CALL
30	150030	1	Screw MT009	CALL
31	150031	1	Washer T6.5x13	CALL
32	150032	1	Clamping Lever	CALL
33	150033	1	Support Assembly	CALL
34	150034	1	Clamping Base for 45° Angle	CALL

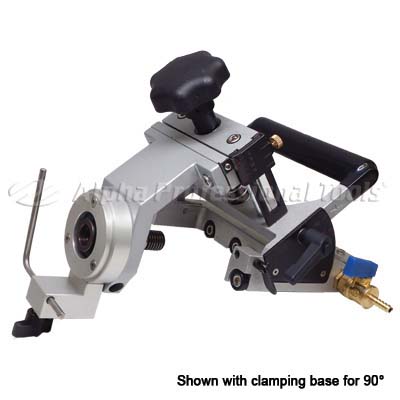

34	150035	1	Clamping Base for 90° Angle	CALL
35	150036	1	Water Hose	CALL
36	150037	1	Water Valve Assembly	CALL
37	150038	1	Water Hose (10ft / 3m)	CALL
38	150039	1	Coupling Assembly	CALL
39	150040	1	Bearing Nut	CALL
40	150041	1	Bearing Housing	CALL
41	150042	1	Ball Bearing B6004LLU	CALL
42	150043	1	Main Shaft (5/8"-11 UNC) *Other sizes available upon request	CALL
43	150044	1	Bearing Housing Cover	CALL
44	150045	1	Screw MT011	CALL
45	150046	1	Bracket	CALL
46	150047	1	Hex. Screw CAP044	CALL
47	150048	1	Screw with Knob	CALL
48	150049	1	Stopper	CALL
49	150050	1	Hex. Wrench (5mm)	CALL
50	150051	1	Spanner Wrench	CALL
51	150053	1	Guide Bar	CALL
52	150054	1	Screw	CALL
999	150052	1	Builder’s Plate	CALL

SPARE PARTS

DRAWING NO.	PART NO.	VERSION	DESCRIPTION	PRICE$
1	150001	1	Main Base	CALL
2	150002	1	Rolling Wheel	CALL
3	150003	1	Screw A01A10101	CALL
4	150004	1	Handle	CALL
5	150005	1	Pin P001	CALL
6	150006	1	Gliding Pin	CALL
7	150007	1	Hex. Screw CAP021	CALL
8	150008	1	Lift Base	CALL
9	150009	1	Screw A01A30100	CALL
10	150010	1	Hex. Screw CAP042	CALL
11	150011	1	Spring S064	CALL
12	150012	1	Gliding Spacer	CALL
13	150013	1	Guide Rail	CALL
14	150014	1	Washer T10x16x1.5	CALL
15	150015	1	Angular Measure	CALL
16	150016	1	Fixing Bolt	CALL
17	150017	1	Spring S074	CALL
18	150018	1	Bolt Base Assembly	CALL
19	150019	1	Screw MT005	CALL
20	150020	1	Bolt Assembly	CALL
21	150021	1	Spring Pin	CALL
22	150022	1	Indicator	CALL
23	150023	1	Screw MC006	CALL
24	150024	1	Screw MP6X14	CALL
25	150025	1	Fixing Screw	CALL
26	150026	1	Spring S070	CALL
27	150027	1	Steel Ball	CALL
28	150028	1	Angular Table	CALL
29	150029	1	Screw MT008	CALL
30	150030	1	Screw MT009	CALL
31	150031	1	Washer T6.5x13	CALL
32	150032	1	Clamping Lever	CALL
33	150033	1	Support Assembly	CALL
34	150034	1	Clamping Base for 45° Angle	CALL
34	150035	1	Clamping Base for 90° Angle	CALL
35	150036	1	Water Hose	CALL
36	150037	1	Water Valve Assembly	CALL
37	150038	1	Water Hose (10ft / 3m)	CALL
38	150039	1	Coupling Assembly	CALL
39	150040	1	Bearing Nut	CALL
40	150041	1	Bearing Housing	CALL
41	150042	1	Ball Bearing B6004LLU	CALL
42	150043	1	Main Shaft (5/8"-11 UNC) *Other sizes available upon request	CALL
43	150044	1	Bearing Housing Cover	CALL
44	150045	1	Screw MT011	CALL
45	150046	1	Bracket	CALL
46	150047	1	Hex. Screw CAP044	CALL
47	150048	1	Screw with Knob	CALL
48	150049	1	Stopper	CALL
49	150050	1	Hex. Wrench (5mm)	CALL
50	150051	1	Spanner Wrench	CALL
51	150053	1	Guide Bar	CALL
52	150054	1	Screw	CALL
999	150052	1	Builder’s Plate	CALL

DOCUMENTATION

Manual :	BAB-CASM_v1_manual.pdf
Manual :	BAB1590_v0120_manual.pdf
Manual :	Beveling-Auxiliary-Base_manual.pdf
Manual :	BAB-Dust-Splash-Guard_v0623_manual.pdf
Reference :	BevelingBase_HelpfulHints.pdf
Flyer :	BevelingBase_flyer.pdf
Flyer :	Tools-Large-Format-Tiles_flyer.pdf
Flyer :	BevelingBaseStarterKit_flyer.pdf
Flyer :	BevelingBase-ComparisonChart.pdf
Flyer :	BevelingBase_Brochure.pdf
Flyer :	Dust-Free-Systems_flyer.pdf
