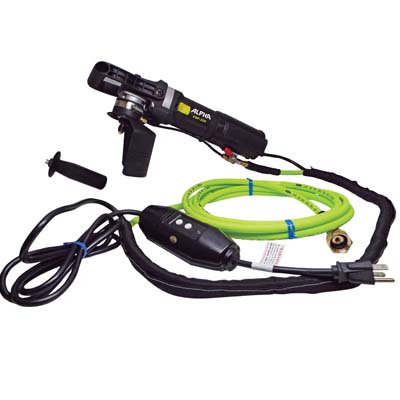

VSP-320 Spare Parts

DRAWING NO.	PART NO.	VERSION	DESCRIPTION	PRICE
1	210004	1	Shower Bolt	6.96
2	210109	1	Output Shaft (5/8"-11 UNC)	18.83
3	210006	1	Key (3x10)	1.54
4	210111	1	Combination Screw M4x14	2.13
5	210090	1	Gear Case Cover	8.17
6	210008	1	Oil lip seal B16x28x7D	8.90
7	210009	1	Bearing Washer	1.16
8	210010	1	Ball Bearing 6201	16.75
9	210011	1	Gear Washer	2.12
10	210012	1	Thrust Bearing 15x28x6	17.59
11	210112	1	O-Ring (15x2.65)	0.40
12	210013	1	Bearing Clamp	4.45
13	210113	1	Combination Screw M5x16	2.08
14	210114	1	Gear	25.19
15	210018	1	C-clip for Shaft 10	0.24
16	210019	1	Oil-impregnated Bearing 8x12x8	2.22
17	210021	1	Self-tapping Screw 4.2x45	0.51
18	210115	1	Self-tapping Screw 4.2x40	0.57
19	210023	1	Screw M10x20	0.71
20	210024	1	C-Handle	33.78
21	210134	1	Case Plastic Cover	5.12
22	210027	1	Gear Case	11.62
23	210076	1	Dash Panel	2.22
24	210116	1	Sealing Ring	1.61
25	210117	1	Pinion Gear Sub Assembly	55.55
27	210033	1	Screw M4x8	0.24
29	210118	1	Bearing Retainer	7.14
30	210035	1	O-Ring (21.2x1.8)	0.58
31	210036	1	Ball Bearing 608	12.37
32	210119	1	Combination Screw M4x8	1.28
33	210120	1	Wire Lead (Circular lugs 4#)	1.80
34	210121	1	Armature 120V	88.30
35	210095	1	Magnetic Ring	8.69
36	210038	1	Ball Bearing 607	11.85
37	210039	1	Rubber Bearing Seat	3.75
38	210106	1	Wind Shield	2.70
39	210041	1	Self-tapping Screw 4.2x70	0.42
40	210122	1	Field Coil 120V	53.87
41	210091	1	Field Coil Case	17.48
42	210123	1	Data Label	0.61
43	210049	1	Self-tapping Screw 2.9x8	0.24
44	210048	1	Carbon Brush 120V Set	13.31
45	210046	1	Carbon Brush Holder	5.32
46	210047	1	Coil Spring	1.34
47	210094	1	Terminal Block	1.03
48	210135	1	Speed Pot w/Feed-Back Sensor 120V	57.26
50	210053	1	Rear Cover	7.85
51	210054	1	Self-tapping Screw 4.2x14	0.24
52	210055	1	Cord Jacket	1.17
53	210124	1	Memory Wrap (3ft./1m) (18mm)	18.93
54	210108	1	Rubber Band	1.06
55	210107	1	Ventilation Cap	15.01
56	210125	1	GFCI 120V	91.81
57	210126	1	Power Supply Cord 120V	26.79
60	210128	1	Band Clamp 8-12	1.29
61	210129	1	Water Hose Assembly (15ft./5m)	36.28
63	210078	1	Self-tapping Screw 4.2x10	0.51
64	210131	1	Water Hose Connector	CALL
65	210063	1	Water Valve Bracket	2.42
66	210064	1	Water Valve Assembly	12.26
67	210132	1	Nut M10	6.16
68	210065	1	Water Hose 6mm ODx8in (20cm)	1.17
69	210067	1	Outlet Tap	3.36
70	210066	1	Cord Clamp	0.40
71	210068	2	Switch	7.40
72	210070	2	Switch Push Lever	0.94
73	210069	2	Back Moving Spring	0.19
74	210133	2	Brand Label	0.81
75	210071	2	Switch Push Button	0.74
76	210074	2	Side Handle	12.80
77	210110	2	Double Open End Wrench (17mm-19mm)	14.27
78	210048	2	Carbon Brush 120V Set	13.31
79	210088	2	Band Clamp 40-63	5.57
80	210089	2	Splash Guard	24.83
81	110301	2	Variable Drive Flange (5/8"-11)	8.68
82	210301	2	Variable Drive Lock Nut (5/8"-11)	7.46
83	210105	2	Pin Wrench	3.28

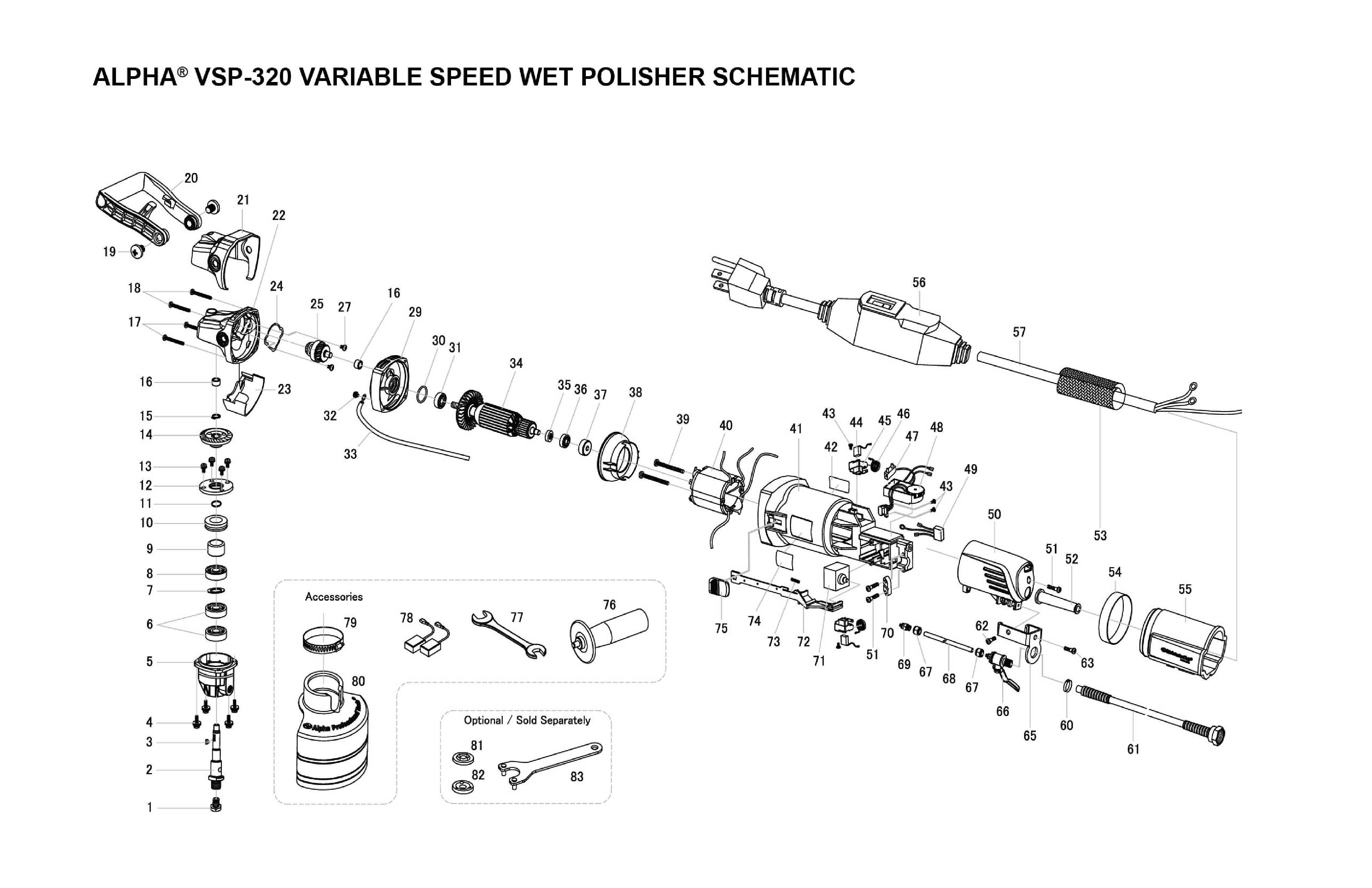

SPARE PARTS

DRAWING NO.	PART NO.	VERSION	DESCRIPTION	PRICE$
1	210004	1	Shower Bolt	6.96
2	210109	1	Output Shaft (5/8"-11 UNC)	18.83
3	210006	1	Key (3x10)	1.54
4	210111	1	Combination Screw M4x14	2.13
5	210090	1	Gear Case Cover	8.17
6	210008	1	Oil lip seal B16x28x7D	8.90
7	210009	1	Bearing Washer	1.16
8	210010	1	Ball Bearing 6201	16.75
9	210011	1	Gear Washer	2.12
10	210012	1	Thrust Bearing 15x28x6	17.59
11	210112	1	O-Ring (15x2.65)	0.40
12	210013	1	Bearing Clamp	4.45
13	210113	1	Combination Screw M5x16	2.08
14	210114	1	Gear	25.19
15	210018	1	C-clip for Shaft 10	0.24
16	210019	1	Oil-impregnated Bearing 8x12x8	2.22
17	210021	1	Self-tapping Screw 4.2x45	0.51
18	210115	1	Self-tapping Screw 4.2x40	0.57
19	210023	1	Screw M10x20	0.71
20	210024	1	C-Handle	33.78
21	210134	1	Case Plastic Cover	5.12
22	210027	1	Gear Case	11.62
23	210076	1	Dash Panel	2.22
24	210116	1	Sealing Ring	1.61
25	210117	1	Pinion Gear Sub Assembly	55.55
27	210033	1	Screw M4x8	0.24
29	210118	1	Bearing Retainer	7.14
30	210035	1	O-Ring (21.2x1.8)	0.58
31	210036	1	Ball Bearing 608	12.37
32	210119	1	Combination Screw M4x8	1.28
33	210120	1	Wire Lead (Circular lugs 4#)	1.80
34	210121	1	Armature 120V	88.30
35	210095	1	Magnetic Ring	8.69
36	210038	1	Ball Bearing 607	11.85
37	210039	1	Rubber Bearing Seat	3.75
38	210106	1	Wind Shield	2.70
39	210041	1	Self-tapping Screw 4.2x70	0.42
40	210122	1	Field Coil 120V	53.87
41	210091	1	Field Coil Case	17.48
42	210123	1	Data Label	0.61
43	210049	1	Self-tapping Screw 2.9x8	0.24
44	210048	1	Carbon Brush 120V Set	13.31
45	210046	1	Carbon Brush Holder	5.32
46	210047	1	Coil Spring	1.34
47	210094	1	Terminal Block	1.03
48	210135	1	Speed Pot w/Feed-Back Sensor 120V	57.26
50	210053	1	Rear Cover	7.85
51	210054	1	Self-tapping Screw 4.2x14	0.24
52	210055	1	Cord Jacket	1.17
53	210124	1	Memory Wrap (3ft./1m) (18mm)	18.93
54	210108	1	Rubber Band	1.06
55	210107	1	Ventilation Cap	15.01
56	210125	1	GFCI 120V	91.81
57	210126	1	Power Supply Cord 120V	26.79
60	210128	1	Band Clamp 8-12	1.29
61	210129	1	Water Hose Assembly (15ft./5m)	36.28
63	210078	1	Self-tapping Screw 4.2x10	0.51
64	210131	1	Water Hose Connector	CALL
65	210063	1	Water Valve Bracket	2.42
66	210064	1	Water Valve Assembly	12.26
67	210132	1	Nut M10	6.16
68	210065	1	Water Hose 6mm ODx8in (20cm)	1.17
69	210067	1	Outlet Tap	3.36
70	210066	1	Cord Clamp	0.40
71	210068	2	Switch	7.40
72	210070	2	Switch Push Lever	0.94
73	210069	2	Back Moving Spring	0.19
74	210133	2	Brand Label	0.81
75	210071	2	Switch Push Button	0.74
76	210074	2	Side Handle	12.80
77	210110	2	Double Open End Wrench (17mm-19mm)	14.27
78	210048	2	Carbon Brush 120V Set	13.31
79	210088	2	Band Clamp 40-63	5.57
80	210089	2	Splash Guard	24.83
81	110301	2	Variable Drive Flange (5/8"-11)	8.68
82	210301	2	Variable Drive Lock Nut (5/8"-11)	7.46
83	210105	2	Pin Wrench	3.28
