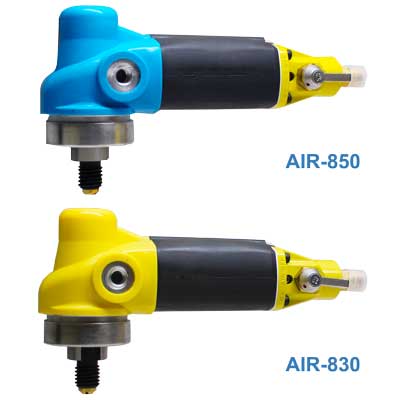

AIR-830/834/850/854

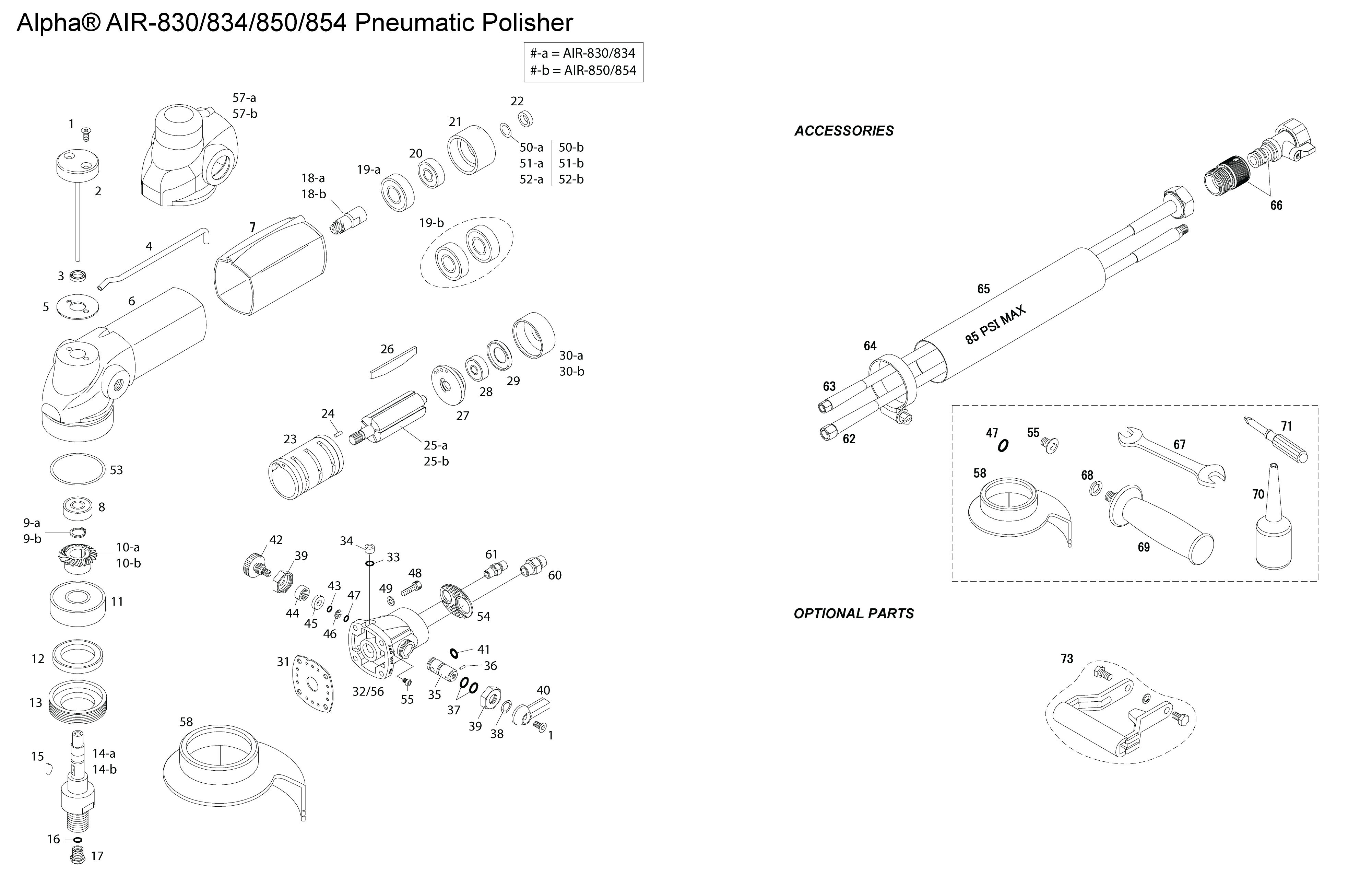

DRAWING NO.	PART NO.	VERSION	DESCRIPTION	PRICE
1	658-01	1	Screw M4x10	1.81
2	658-92	1	Pipe-Joint Assembly	32.21
3	516-44	1	Oil Seal	6.99
4	658-09	1	W-pipe	7.63
5	658-10	1	Head Packing	1.91
6	658-11	1	Body	87.46
7	658-12	1	Body Cover	19.07
8	516-20	1	Ball Bearing 608ZZ	8.73
11	516-48	1	Bearing 6302ZZ	12.73
12	516-49	1	Oil Seal	6.99
13	516-50	1	44 Nut	17.52
14	658-100	1	Spindle 5/8"-11 Thread	57.80
14	658-155	1	Spindle M14 (PF)	57.80
15	658-22	1	Woodruff Key	2.28
16	658-23	1	O-Ring (1.7mm x 2.75mm)	1.91
17	658-24	1	Spray Nozzle	9.55
20	516-20	1	Ball Bearing 608ZZ	8.73
23	658-101	1	Cylinder (inc. Part No. 658-31)	119.35
24	658-31	1	Spring Pin	1.91
26	658-103	1	Vane (5 pc set)	34.95
27	516-26	1	R-Bearing Case	35.00
28	516-27	1	Bearing 626ZZ	8.73
29	516-28	1	Bearing Cap	5.26
31	658-89	1	Body Gasket (req. Part No. 658-90)	5.73
32	658-104	1	Endcase Assembly (inc. PartNo. 658-72, 73, 91 & 105)	109.24
33	658-72	1	O-Ring (1.9mm x 3.8mm)	1.76
34	658-73	1	Bushing 07	2.71
35	658-87	1	A-Valve 4.0mm (inc. Part No. 658-88)	26.36
37	658-156	2	A-Valve 4.5mm (inc. Part No. 658-88)	23.69
36	658-88	1	Needle Pin	2.05
37	658-47	1	O-Ring (1.7mm x 6.75mm)	2.82
38	658-45	1	Wave Washer	2.30
39	658-46	1	Nut M14	9.02
40	658-50	1	Valve Lever	22.87
41	658-105	1	O-Ring (inside of air valve pipe)	2.72
42	658-106	1	Water Valve (inc. Part No. 658-108)	29.84
43	658-64	1	O-Ring (1.0mm x 3.0mm)	1.88
44	658-107	1	M8 Nut	9.32
45	658-67	1	Washer 05	3.78
46	658-65	1	Retaining Ring E-Style	2.27
47	658-108	1	O-Ring (P-2)	2.72
48	658-145	1	Socket Head Screw M4 x 15	2.71
49	658-144	1	Washer 04	0.28
53	658-84	1	Shim (0.20mm)	2.49
54	658-109	1	Silencer	12.41
55	658-91	1	Screw (w/O-Ring Seal (1pc in tool + 1 spare))	2.27
56	658-110	1	Complete Endcase Assembly	166.56
58	658-112	1	Splash Guard	6.97
60	1030-1021	1	Male Union for Air Hose Fitting	4.94
61	1030-1020	1	Male Union for Water Hose Fitting	4.62
62	1030-0002	1	Air Hose Assembly (15ft / 4.5m)	34.50
63	1030-0003	1	Water Hose Assembly (15ft / 4.5m)	42.50
64	1030-1104	1	Hose Clamp	2.67
65	658-95	1	Exhaust Hose	16.23
66	658-113	1	Water Quick Coupler with Shut off Valve	20.12
67	1030-1103	1	Double Open End Wrench (19mm/22mm)	13.96
68	658-13	1	Spring Washer M10	1.91
69	658-14	1	Side Handle	19.07
70	AIR-008	1	Rust Inhibitor Oil (8oz / 237ml)	12.43
71	658-114	1	Phillips Screwdriver (P1)	2.13
73	1030-0004	1	C-Shaped Handle	41.39
10a	658-17	1	Spiral Bevel Gear	45.79
10b	658-116	1	Spiral Bevel Gear for AIR-850	51.59
18a	658-25	1	Spiral Bevel Pinion	22.87
18b	658-117	1	Spiral Bevel Pinion for AIR-850	28.44
19a	516-18	1	Ball Bearing 6001ZZ	8.73
19b	658-118	1	Ball Bearing (6000ZZ)	19.12
21a	658-28	1	F-Bearing Case	22.87
21b	658-119	1	Front Bearing Case for AIR-850	28.32
22a	658-29	1	Rotor Spacer	3.81
22b	658-120	1	Rotor Spacer for AIR-850	5.47
25a	658-102	1	Rotor 5 Vane for AIR-830	57.16
25b	658-121	1	Rotor 5 Vane for AIR-850	53.82
30a	658-37	1	Air Inlet Case	5.72
30b	658-122	1	Air Inlet Case for AIR-850	7.60
50a	658-80	1	Shim (0.10mm)	1.01
50b	658-123	1	Shim (D10xT0.10mm)	1.37
51a	658-81	1	Shim (0.03mm)	1.01
51b	658-124	1	Shim (D10xT0.03mm)	1.37
52a	658-82	1	Shim (0.05mm)	1.01
52b	658-125	1	Shim (D10xT0.05mm)	1.37
57a	658-111	1	Head Cover (Yellow) for AIR-830/PSC-600	21.85
57b	658-126	1	Head Cover (Blue) for AIR-850	21.85
9a	658-16	1	Snap Ring	1.91
9b	658-115	1	Snap Ring (GV-10) for AIR-850	3.28
997	ST055	1	M44-Nut Wrench	61.60
100	1030-0018	1	40' Air Hose for AIR-680/830/850	51.25
100	1030-0019	1	40' Water Hose for AIR-680/830/850	59.50
100	1030-0010	1	20' Air Hose for AIR-680/830/850	37.75
100	1030-0011	1	20' Water Hose for AIR-680/830/850	45.90
100	1030-0012	1	25' Air Hose for AIR-680/830/850	41.00
100	1030-0013	1	25' Water Hose for AIR-680/830/850	49.30
100	1030-0014	1	30' Air Hose for AIR-680/830/850	44.50
100	1030-0015	1	30' Water Hose for AIR-680/830/850	52.70
100	1030-0016	1	35' Air Hose for AIR-680/830/850	47.80
100	1030-0017	1	35' Water Hose for AIR-680/830/850	52.70

SPARE PARTS

DRAWING NO.	PART NO.	VERSION	DESCRIPTION	PRICE$
1	658-01	1	Screw M4x10	1.81
2	658-92	1	Pipe-Joint Assembly	32.21
3	516-44	1	Oil Seal	6.99
4	658-09	1	W-pipe	7.63
5	658-10	1	Head Packing	1.91
6	658-11	1	Body	87.46
7	658-12	1	Body Cover	19.07
8	516-20	1	Ball Bearing 608ZZ	8.73
11	516-48	1	Bearing 6302ZZ	12.73
12	516-49	1	Oil Seal	6.99
13	516-50	1	44 Nut	17.52
14	658-100	1	Spindle 5/8"-11 Thread	57.80
14	658-155	1	Spindle M14 (PF)	57.80
15	658-22	1	Woodruff Key	2.28
16	658-23	1	O-Ring (1.7mm x 2.75mm)	1.91
17	658-24	1	Spray Nozzle	9.55
20	516-20	1	Ball Bearing 608ZZ	8.73
23	658-101	1	Cylinder (inc. Part No. 658-31)	119.35
24	658-31	1	Spring Pin	1.91
26	658-103	1	Vane (5 pc set)	34.95
27	516-26	1	R-Bearing Case	35.00
28	516-27	1	Bearing 626ZZ	8.73
29	516-28	1	Bearing Cap	5.26
31	658-89	1	Body Gasket (req. Part No. 658-90)	5.73
32	658-104	1	Endcase Assembly (inc. PartNo. 658-72, 73, 91 & 105)	109.24
33	658-72	1	O-Ring (1.9mm x 3.8mm)	1.76
34	658-73	1	Bushing 07	2.71
35	658-87	1	A-Valve 4.0mm (inc. Part No. 658-88)	26.36
37	658-156	2	A-Valve 4.5mm (inc. Part No. 658-88)	23.69
36	658-88	1	Needle Pin	2.05
37	658-47	1	O-Ring (1.7mm x 6.75mm)	2.82
38	658-45	1	Wave Washer	2.30
39	658-46	1	Nut M14	9.02
40	658-50	1	Valve Lever	22.87
41	658-105	1	O-Ring (inside of air valve pipe)	2.72
42	658-106	1	Water Valve (inc. Part No. 658-108)	29.84
43	658-64	1	O-Ring (1.0mm x 3.0mm)	1.88
44	658-107	1	M8 Nut	9.32
45	658-67	1	Washer 05	3.78
46	658-65	1	Retaining Ring E-Style	2.27
47	658-108	1	O-Ring (P-2)	2.72
48	658-145	1	Socket Head Screw M4 x 15	2.71
49	658-144	1	Washer 04	0.28
53	658-84	1	Shim (0.20mm)	2.49
54	658-109	1	Silencer	12.41
55	658-91	1	Screw (w/O-Ring Seal (1pc in tool + 1 spare))	2.27
56	658-110	1	Complete Endcase Assembly	166.56
58	658-112	1	Splash Guard	6.97
60	1030-1021	1	Male Union for Air Hose Fitting	4.94
61	1030-1020	1	Male Union for Water Hose Fitting	4.62
62	1030-0002	1	Air Hose Assembly (15ft / 4.5m)	34.50
63	1030-0003	1	Water Hose Assembly (15ft / 4.5m)	42.50
64	1030-1104	1	Hose Clamp	2.67
65	658-95	1	Exhaust Hose	16.23
66	658-113	1	Water Quick Coupler with Shut off Valve	20.12
67	1030-1103	1	Double Open End Wrench (19mm/22mm)	13.96
68	658-13	1	Spring Washer M10	1.91
69	658-14	1	Side Handle	19.07
70	AIR-008	1	Rust Inhibitor Oil (8oz / 237ml)	12.43
71	658-114	1	Phillips Screwdriver (P1)	2.13
73	1030-0004	1	C-Shaped Handle	41.39
10a	658-17	1	Spiral Bevel Gear	45.79
10b	658-116	1	Spiral Bevel Gear for AIR-850	51.59
18a	658-25	1	Spiral Bevel Pinion	22.87
18b	658-117	1	Spiral Bevel Pinion for AIR-850	28.44
19a	516-18	1	Ball Bearing 6001ZZ	8.73
19b	658-118	1	Ball Bearing (6000ZZ)	19.12
21a	658-28	1	F-Bearing Case	22.87
21b	658-119	1	Front Bearing Case for AIR-850	28.32
22a	658-29	1	Rotor Spacer	3.81
22b	658-120	1	Rotor Spacer for AIR-850	5.47
25a	658-102	1	Rotor 5 Vane for AIR-830	57.16
25b	658-121	1	Rotor 5 Vane for AIR-850	53.82
30a	658-37	1	Air Inlet Case	5.72
30b	658-122	1	Air Inlet Case for AIR-850	7.60
50a	658-80	1	Shim (0.10mm)	1.01
50b	658-123	1	Shim (D10xT0.10mm)	1.37
51a	658-81	1	Shim (0.03mm)	1.01
51b	658-124	1	Shim (D10xT0.03mm)	1.37
52a	658-82	1	Shim (0.05mm)	1.01
52b	658-125	1	Shim (D10xT0.05mm)	1.37
57a	658-111	1	Head Cover (Yellow) for AIR-830/PSC-600	21.85
57b	658-126	1	Head Cover (Blue) for AIR-850	21.85
9a	658-16	1	Snap Ring	1.91
9b	658-115	1	Snap Ring (GV-10) for AIR-850	3.28
997	ST055	1	M44-Nut Wrench	61.60
100	1030-0018	1	40' Air Hose for AIR-680/830/850	51.25
100	1030-0019	1	40' Water Hose for AIR-680/830/850	59.50
100	1030-0010	1	20' Air Hose for AIR-680/830/850	37.75
100	1030-0011	1	20' Water Hose for AIR-680/830/850	45.90
100	1030-0012	1	25' Air Hose for AIR-680/830/850	41.00
100	1030-0013	1	25' Water Hose for AIR-680/830/850	49.30
100	1030-0014	1	30' Air Hose for AIR-680/830/850	44.50
100	1030-0015	1	30' Water Hose for AIR-680/830/850	52.70
100	1030-0016	1	35' Air Hose for AIR-680/830/850	47.80
100	1030-0017	1	35' Water Hose for AIR-680/830/850	52.70
