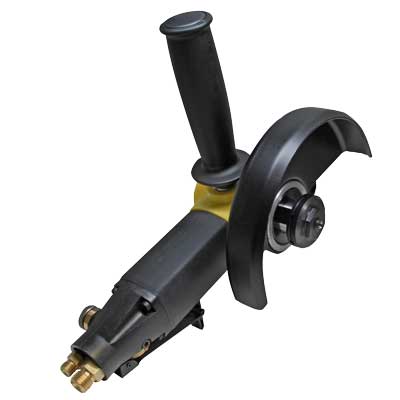

PSC-600 Spare Parts

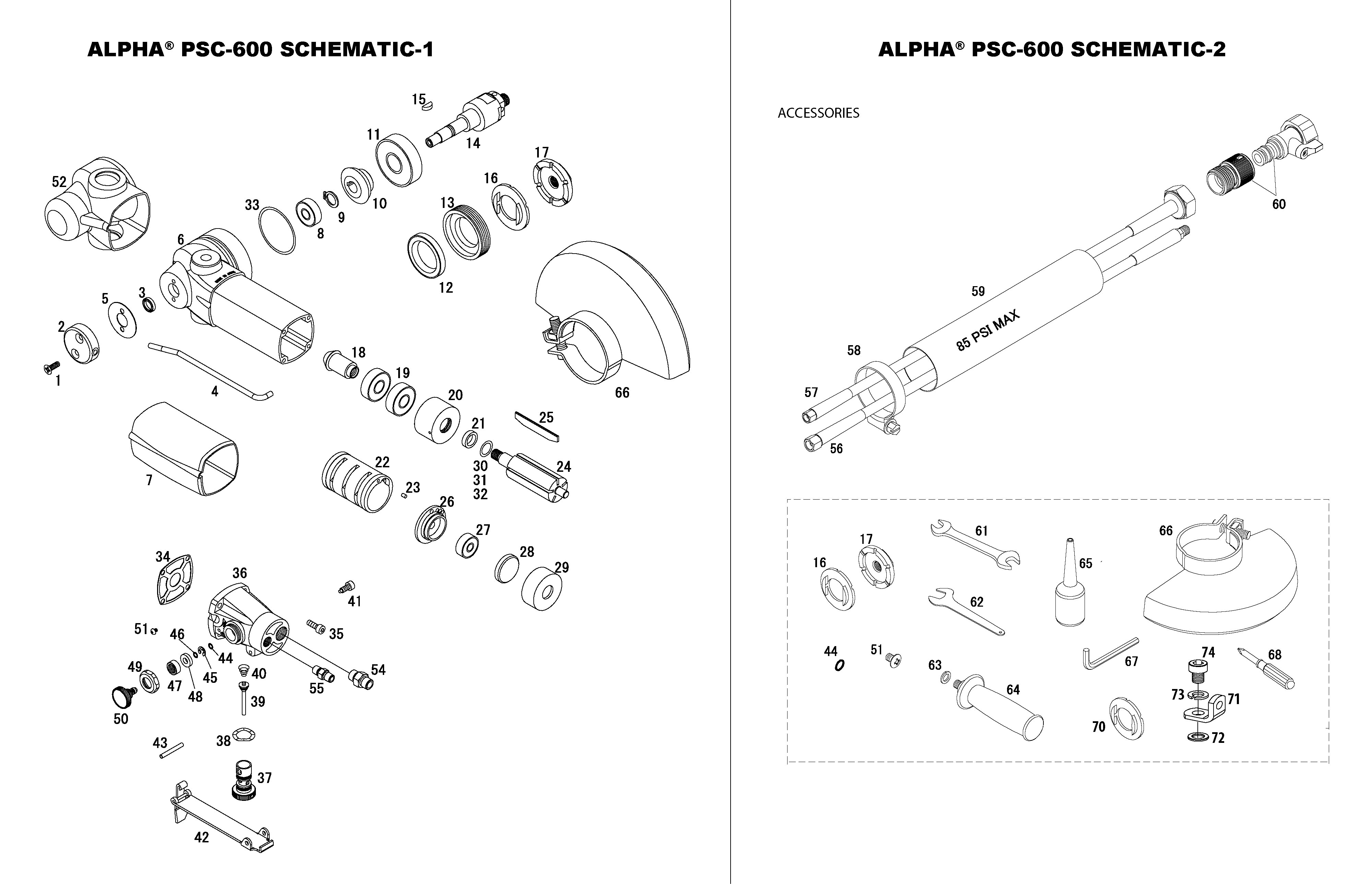

DRAWING NO.	PART NO.	VERSION	DESCRIPTION	PRICE
1	658-01	1	Screw M4x10	1.81
2	658-127	1	Pipe-Joint Assembly	32.21
3	516-44	1	Oil Seal	6.99
4	658-09	1	W-pipe	7.63
5	658-10	1	Head Packing	1.91
6	658-11	1	Body	87.46
7	658-12	1	Body Cover	19.07
8	516-20	1	Ball Bearing 608ZZ	8.73
9	658-16	1	Snap Ring	1.91
10	658-128	1	Spiral Bevel Gear	54.41
11	516-48	1	Bearing 6302ZZ	12.73
12	516-49	1	Oil Seal	6.99
13	516-50	1	44 Nut	17.52
14	658-129	1	Spindle for PSC-600	84.40
15	658-22	1	Woodruff Key	2.28
16	658-130	1	Inner Flange	24.68
17	658-131	1	Outer Flange	21.43
18	658-132	1	Spiral Bevel Pinion	29.84
19	658-118	1	Ball Bearing (6000ZZ)	19.12
20	658-119	1	Front Bearing Case for AIR-850	28.32
21	658-120	1	Rotor Spacer for AIR-850	5.47
22	658-101	1	Cylinder (inc. Part No. 658-31)	119.35
23	658-31	1	Spring Pin	1.91
24	658-121	1	Rotor 5 Vane for AIR-850	53.82
25	658-103	1	Vane (5 pc set)	34.95
26	516-26	1	R-Bearing Case	35.00
27	516-27	1	Bearing 626ZZ	8.73
28	516-28	1	Bearing Cap	5.26
29	658-122	1	Air Inlet Case for AIR-850	7.60
30	658-123	1	Shim (D10xT0.10mm)	1.37
31	658-124	1	Shim (D10xT0.03mm)	1.37
32	658-125	1	Shim (D10xT0.05mm)	1.37
33	658-84	1	Shim (0.20mm)	2.49
34	658-38	1	Body Gasket	2.60
35	658-145	1	Socket Head Screw M4 x 15	2.71
36	658-133	1	Endcase Assembly	68.90
37	658-158	2	VALVE PIN SLEEVE WITH O-RING (2PCS)	48.95
38	658-135	1	Wave Washer	2.18
39	658-136	1	Air Valve	14.67
40	658-137	1	Valve Spring	4.09
41	658-138	1	Cap Bolt	6.83
42	658-139	1	Throttle Lever	21.65
43	658-140	1	Spring Pin	2.72
44	658-108	1	O-Ring (P-2)	2.72
45	658-65	1	Retaining Ring E-Style	2.27
46	658-64	1	O-Ring (1.0mm x 3.0mm)	1.88
47	658-107	1	M8 Nut	9.32
48	658-67	1	Washer 05	3.78
49	658-141	1	M16 Nut	11.43
50	658-106	1	Water Valve (inc. Part No. 658-108)	29.84
51	658-91	1	Screw (w/O-Ring Seal (1pc in tool + 1 spare))	2.27
52	658-111	1	Head Cover (Yellow) for AIR-830/PSC-600	21.85
54	1030-1021	1	Male Union for Air Hose Fitting	4.94
55	1030-1020	1	Male Union for Water Hose Fitting	4.62
56	1030-0002	1	Air Hose Assembly (15ft / 4.5m)	34.50
57	1030-0003	1	Water Hose Assembly (15ft / 4.5m)	42.50
58	1030-1104	1	Hose Clamp	2.67
59	658-95	1	Exhaust Hose	16.23
60	658-113	1	Water Quick Coupler with Shut off Valve	20.12
61	1030-1103	1	Double Open End Wrench (19mm/22mm)	13.96
62	658-62	1	Wrench 22mm	8.68
63	658-13	1	Spring Washer M10	1.91
64	658-14	1	Side Handle	19.07
65	AIR-008	1	Rust Inhibitor Oil (8oz / 237ml)	12.43
66	658-142	1	6" Safety Guard Assembly	23.07
67	658-143	1	Hex. Wrench (6mm)	4.09
68	658-114	1	Phillips Screwdriver (P1)	2.13
69	658-149	1	Complete End Case Assembly	CALL
70	658-154	1	Screw SHC SS (M10x16)	1.09
71	658-151	1	L-Bracket Assembly	9.11
71	658-153	1	Spring Lock Washer SS (M10)	0.18
72	658-150	1	Inner Flange for Grinding	16.57
73	658-152	1	Flat Washer SS (M10)	0.18
997	ST055	1	M44-Nut Wrench	61.60

SPARE PARTS

DRAWING NO.	PART NO.	VERSION	DESCRIPTION	PRICE$
1	658-01	1	Screw M4x10	1.81
2	658-127	1	Pipe-Joint Assembly	32.21
3	516-44	1	Oil Seal	6.99
4	658-09	1	W-pipe	7.63
5	658-10	1	Head Packing	1.91
6	658-11	1	Body	87.46
7	658-12	1	Body Cover	19.07
8	516-20	1	Ball Bearing 608ZZ	8.73
9	658-16	1	Snap Ring	1.91
10	658-128	1	Spiral Bevel Gear	54.41
11	516-48	1	Bearing 6302ZZ	12.73
12	516-49	1	Oil Seal	6.99
13	516-50	1	44 Nut	17.52
14	658-129	1	Spindle for PSC-600	84.40
15	658-22	1	Woodruff Key	2.28
16	658-130	1	Inner Flange	24.68
17	658-131	1	Outer Flange	21.43
18	658-132	1	Spiral Bevel Pinion	29.84
19	658-118	1	Ball Bearing (6000ZZ)	19.12
20	658-119	1	Front Bearing Case for AIR-850	28.32
21	658-120	1	Rotor Spacer for AIR-850	5.47
22	658-101	1	Cylinder (inc. Part No. 658-31)	119.35
23	658-31	1	Spring Pin	1.91
24	658-121	1	Rotor 5 Vane for AIR-850	53.82
25	658-103	1	Vane (5 pc set)	34.95
26	516-26	1	R-Bearing Case	35.00
27	516-27	1	Bearing 626ZZ	8.73
28	516-28	1	Bearing Cap	5.26
29	658-122	1	Air Inlet Case for AIR-850	7.60
30	658-123	1	Shim (D10xT0.10mm)	1.37
31	658-124	1	Shim (D10xT0.03mm)	1.37
32	658-125	1	Shim (D10xT0.05mm)	1.37
33	658-84	1	Shim (0.20mm)	2.49
34	658-38	1	Body Gasket	2.60
35	658-145	1	Socket Head Screw M4 x 15	2.71
36	658-133	1	Endcase Assembly	68.90
37	658-158	2	VALVE PIN SLEEVE WITH O-RING (2PCS)	48.95
38	658-135	1	Wave Washer	2.18
39	658-136	1	Air Valve	14.67
40	658-137	1	Valve Spring	4.09
41	658-138	1	Cap Bolt	6.83
42	658-139	1	Throttle Lever	21.65
43	658-140	1	Spring Pin	2.72
44	658-108	1	O-Ring (P-2)	2.72
45	658-65	1	Retaining Ring E-Style	2.27
46	658-64	1	O-Ring (1.0mm x 3.0mm)	1.88
47	658-107	1	M8 Nut	9.32
48	658-67	1	Washer 05	3.78
49	658-141	1	M16 Nut	11.43
50	658-106	1	Water Valve (inc. Part No. 658-108)	29.84
51	658-91	1	Screw (w/O-Ring Seal (1pc in tool + 1 spare))	2.27
52	658-111	1	Head Cover (Yellow) for AIR-830/PSC-600	21.85
54	1030-1021	1	Male Union for Air Hose Fitting	4.94
55	1030-1020	1	Male Union for Water Hose Fitting	4.62
56	1030-0002	1	Air Hose Assembly (15ft / 4.5m)	34.50
57	1030-0003	1	Water Hose Assembly (15ft / 4.5m)	42.50
58	1030-1104	1	Hose Clamp	2.67
59	658-95	1	Exhaust Hose	16.23
60	658-113	1	Water Quick Coupler with Shut off Valve	20.12
61	1030-1103	1	Double Open End Wrench (19mm/22mm)	13.96
62	658-62	1	Wrench 22mm	8.68
63	658-13	1	Spring Washer M10	1.91
64	658-14	1	Side Handle	19.07
65	AIR-008	1	Rust Inhibitor Oil (8oz / 237ml)	12.43
66	658-142	1	6" Safety Guard Assembly	23.07
67	658-143	1	Hex. Wrench (6mm)	4.09
68	658-114	1	Phillips Screwdriver (P1)	2.13
69	658-149	1	Complete End Case Assembly	CALL
70	658-154	1	Screw SHC SS (M10x16)	1.09
71	658-151	1	L-Bracket Assembly	9.11
71	658-153	1	Spring Lock Washer SS (M10)	0.18
72	658-150	1	Inner Flange for Grinding	16.57
73	658-152	1	Flat Washer SS (M10)	0.18
997	ST055	1	M44-Nut Wrench	61.60

DOCUMENTATION

Manual :	PSC-600_v1219_manual.pdf
Reference :	PSC-600_GrindingWheelInstructions.pdf
Parts-Schematic :	PSC-600_v1219_Parts-Schematic.pdf
Parts-Schematic :	PSC-600_v0922_Parts-Schematic.pdf
Flyer :	PneumaticCutter-ComparisonChart.pdf
Flyer :	PSC-600_flyer.pdf
