AIR-658 Spare Parts (Discontinued)

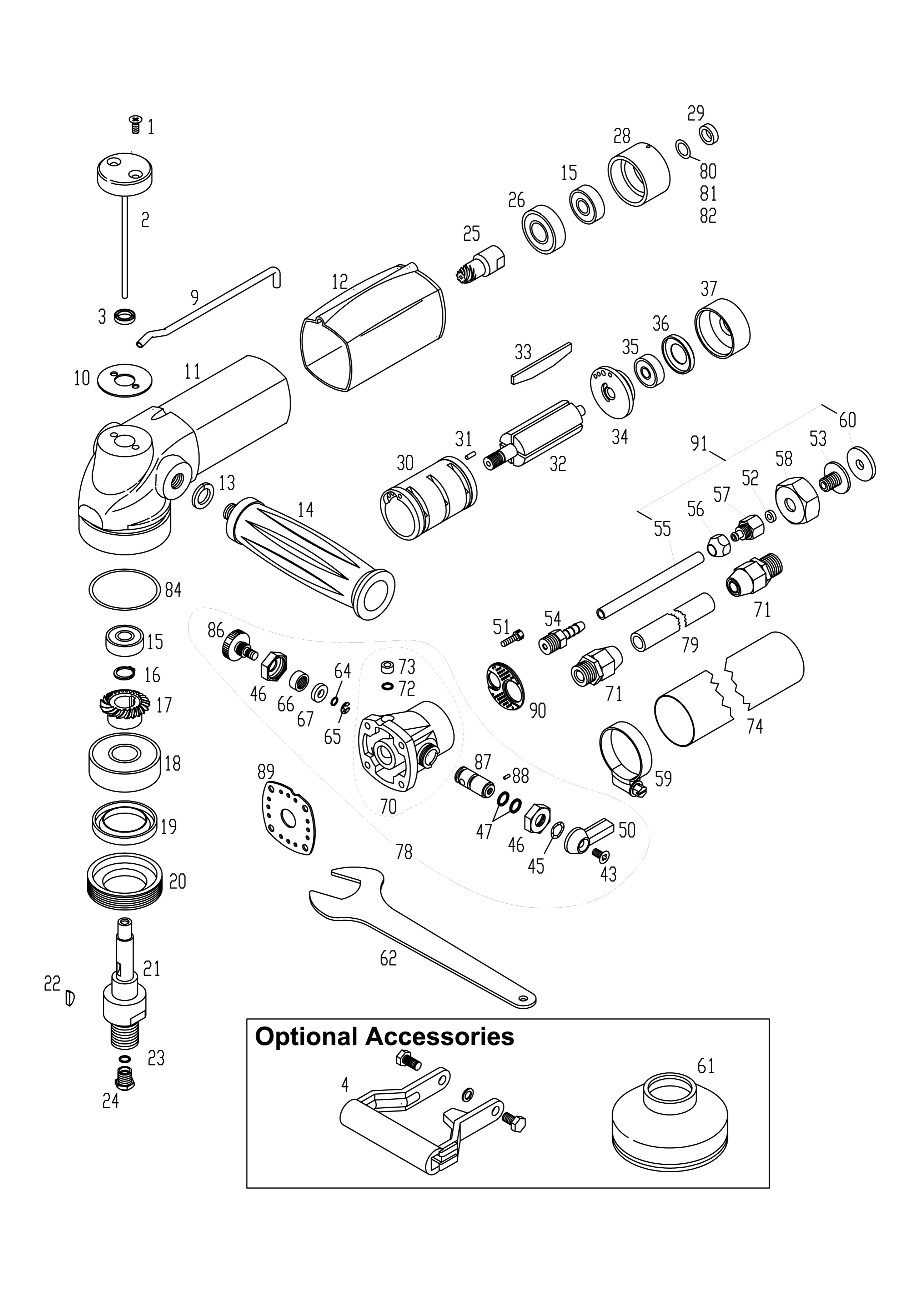

DRAWING NO.	PART NO.	VERSION	DESCRIPTION	PRICE
1	658-01	1	Screw M4x10	1.81
2	658-92	2	Pipe-Joint Assembly	32.21
3	516-44	1	Oil Seal	6.99
4	1030-0004	1	C-Shaped Handle	41.39
9	658-09	1	W-pipe	7.63
10	658-10	1	Head Packing	1.91
11	658-11	1	Body	87.46
12	658-12	1	Body Cover	19.07
13	658-13	1	Spring Washer M10	1.91
14	658-14	1	Side Handle	19.07
15	516-20	1	Ball Bearing 608ZZ	8.73
16	658-16	1	Snap Ring	1.91
17	658-17	1	Spiral Bevel Gear	45.79
18	516-48	1	Bearing 6302ZZ	12.73
19	658-49	1	Oil Seal	CALL
22	658-22	1	Woodruff Key	2.28
23	658-23	1	O-Ring (1.7mm x 2.75mm)	1.91
24	658-24	1	Spray Nozzle	9.55
25	658-25	1	Spiral Bevel Pinion	22.87
26	516-18	1	Ball Bearing 6001ZZ	8.73
21	658-93	2	Spindle 5/8"-11 Thread	71.62
28	658-28	1	F-Bearing Case	22.87
29	658-29	1	Rotor Spacer	3.81
30	658-30	1	Cylinder (inc. Part No. 658-31)	114.44
31	658-31	1	Spring Pin	1.91
32	658-32	1	Rotor	45.79
33	516-25	1	Vane (4pc set)	27.96
34	516-26	1	R-Bearing Case	35.00
35	516-27	1	Bearing 626ZZ	8.73
36	516-28	1	Bearing Cap	5.26
37	658-37	1	Air Inlet Case	5.72
43	658-43	1	Screw M4x12	1.81
45	658-45	1	Wave Washer	2.30
46	658-46	1	Nut M14	9.02
47	658-47	1	O-Ring (1.7mm x 6.75mm)	2.82
50	658-50	1	Valve Lever	22.87
51	658-51	1	Screw M4x15	2.10
54	658-54	1	Nipple	5.19
55	133229	1	Water Hose 8mm ODx10ft (3m)	13.25
59	658-59	1	Clamp	6.94
61	658-112	1	Splash Guard	6.97
62	658-62	1	Wrench 22mm	8.68
64	658-64	1	O-Ring (1.0mm x 3.0mm)	1.88
65	658-65	1	Retaining Ring E-Style	2.27
66	658-107	1	M8 Nut	9.32
67	658-67	1	Washer 05	3.78
71	516-79-2	1	Air Hose Joint 1/4 BSPP	6.36
72	658-72	1	O-Ring (1.9mm x 3.8mm)	1.76
73	658-73	1	Bushing 07	2.71
74	658-95	1	Exhaust Hose	16.23
74	658-74	1	Exhaust Hose (Discontinued-Replaced with 658-95)	22.53
78	658-78	1	Complete Endcase Assembly	132.54
78	658-96	2	Complete Endcase Assembly	155.18
79	516-79-1	1	Air Hose 10mm OD x 3M	38.85
80	658-80	1	Shim (0.10mm)	1.01
81	658-81	1	Shim (0.03mm)	1.01
82	658-82	1	Shim (0.05mm)	1.01
84	658-84	1	Shim (0.20mm)	2.49
86	658-86	1	Water Valve (Discontinued-Replaced with 658-106)	22.86
86	658-106	1	Water Valve (inc. Part No. 658-108)	29.84
87	658-87	1	A-Valve 4.0mm (inc. Part No. 658-88)	26.36
88	658-88	1	Needle Pin	2.05
89	658-89	1	Body Gasket (req. Part No. 658-90)	5.73
90	658-90	1	Silencer (req. Part No. 658-89)	11.50
91	133287	1	Water Attachment Assembly 10'	29.88
70	658-94	2	Endcase Assembly (inc. Part No. 658-72, 73, 91)	85.86
997	ST055	1	M44-Nut Wrench	61.60
998	AIR-008	1	Rust Inhibitor Oil (8oz / 237ml)	12.43

SPARE PARTS

DRAWING NO.	PART NO.	VERSION	DESCRIPTION	PRICE$
1	658-01	1	Screw M4x10	1.81
2	658-92	2	Pipe-Joint Assembly	32.21
3	516-44	1	Oil Seal	6.99
4	1030-0004	1	C-Shaped Handle	41.39
9	658-09	1	W-pipe	7.63
10	658-10	1	Head Packing	1.91
11	658-11	1	Body	87.46
12	658-12	1	Body Cover	19.07
13	658-13	1	Spring Washer M10	1.91
14	658-14	1	Side Handle	19.07
15	516-20	1	Ball Bearing 608ZZ	8.73
16	658-16	1	Snap Ring	1.91
17	658-17	1	Spiral Bevel Gear	45.79
18	516-48	1	Bearing 6302ZZ	12.73
19	658-49	1	Oil Seal	CALL
22	658-22	1	Woodruff Key	2.28
23	658-23	1	O-Ring (1.7mm x 2.75mm)	1.91
24	658-24	1	Spray Nozzle	9.55
25	658-25	1	Spiral Bevel Pinion	22.87
26	516-18	1	Ball Bearing 6001ZZ	8.73
21	658-93	2	Spindle 5/8"-11 Thread	71.62
28	658-28	1	F-Bearing Case	22.87
29	658-29	1	Rotor Spacer	3.81
30	658-30	1	Cylinder (inc. Part No. 658-31)	114.44
31	658-31	1	Spring Pin	1.91
32	658-32	1	Rotor	45.79
33	516-25	1	Vane (4pc set)	27.96
34	516-26	1	R-Bearing Case	35.00
35	516-27	1	Bearing 626ZZ	8.73
36	516-28	1	Bearing Cap	5.26
37	658-37	1	Air Inlet Case	5.72
43	658-43	1	Screw M4x12	1.81
45	658-45	1	Wave Washer	2.30
46	658-46	1	Nut M14	9.02
47	658-47	1	O-Ring (1.7mm x 6.75mm)	2.82
50	658-50	1	Valve Lever	22.87
51	658-51	1	Screw M4x15	2.10
54	658-54	1	Nipple	5.19
55	133229	1	Water Hose 8mm ODx10ft (3m)	13.25
59	658-59	1	Clamp	6.94
61	658-112	1	Splash Guard	6.97
62	658-62	1	Wrench 22mm	8.68
64	658-64	1	O-Ring (1.0mm x 3.0mm)	1.88
65	658-65	1	Retaining Ring E-Style	2.27
66	658-107	1	M8 Nut	9.32
67	658-67	1	Washer 05	3.78
71	516-79-2	1	Air Hose Joint 1/4 BSPP	6.36
72	658-72	1	O-Ring (1.9mm x 3.8mm)	1.76
73	658-73	1	Bushing 07	2.71
74	658-95	1	Exhaust Hose	16.23
74	658-74	1	Exhaust Hose (Discontinued-Replaced with 658-95)	22.53
78	658-78	1	Complete Endcase Assembly	132.54
78	658-96	2	Complete Endcase Assembly	155.18
79	516-79-1	1	Air Hose 10mm OD x 3M	38.85
80	658-80	1	Shim (0.10mm)	1.01
81	658-81	1	Shim (0.03mm)	1.01
82	658-82	1	Shim (0.05mm)	1.01
84	658-84	1	Shim (0.20mm)	2.49
86	658-86	1	Water Valve (Discontinued-Replaced with 658-106)	22.86
86	658-106	1	Water Valve (inc. Part No. 658-108)	29.84
87	658-87	1	A-Valve 4.0mm (inc. Part No. 658-88)	26.36
88	658-88	1	Needle Pin	2.05
89	658-89	1	Body Gasket (req. Part No. 658-90)	5.73
90	658-90	1	Silencer (req. Part No. 658-89)	11.50
91	133287	1	Water Attachment Assembly 10'	29.88
70	658-94	2	Endcase Assembly (inc. Part No. 658-72, 73, 91)	85.86
997	ST055	1	M44-Nut Wrench	61.60
998	AIR-008	1	Rust Inhibitor Oil (8oz / 237ml)	12.43
