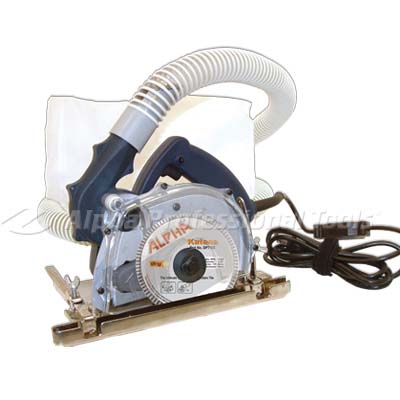

ECC-125 Spare Parts

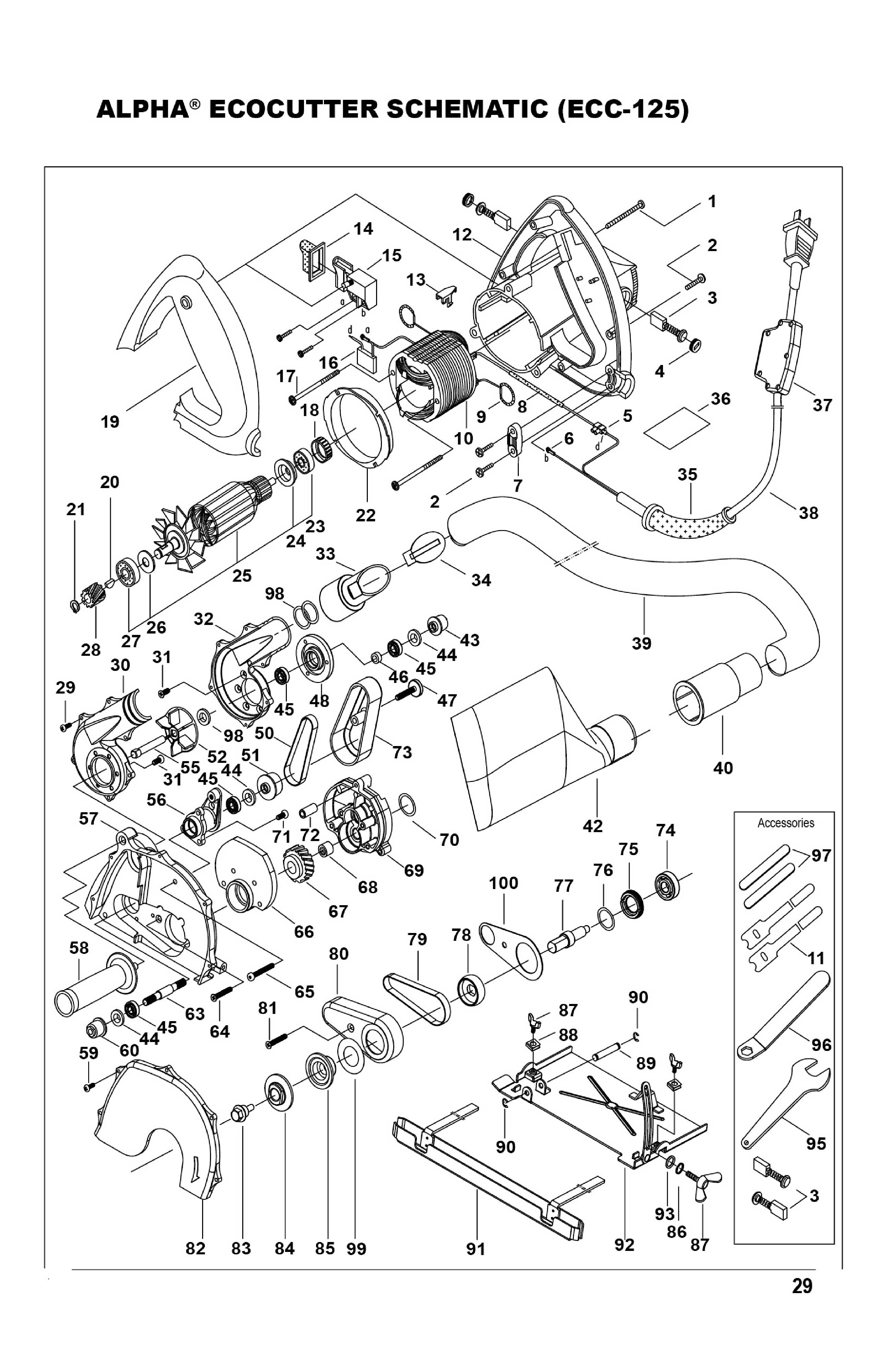

DRAWING NO.	PART NO.	VERSION	DESCRIPTION	PRICE
1	133080	1	Screw M5x40	1.64
2	130031	1	Self-tapping Screw 3.9x19	0.49
3	133033	1	Carbon Brush (2 pc set)	12.55
4	133032	1	Brush Cap	2.23
5	130618	1	Block Terminal	0.88
6	133040	1	Wire Terminal	0.43
7	133086	1	Cable Clamp	0.40
8	133042	1	Insulation Pipe	0.57
9	133034	1	Brush Terminal Assembly	3.28
10	133436	1	Field Coil 110V	66.90
10	133004	1	Field Coil 220V	66.90
11	133551	1	Hook & Loop Strap	3.57
12	133003	1	Rear Motor Housing (Blue)	23.91
13	133041	1	Cable Clip	0.59
14	133044	1	Rubber Switch Cover	1.12
15	133043	1	Switch (with Screw)	25.36
16	133392	1	Condenser Assembly	1.86
17	133029	1	Self-tapping Screw 4.8x65	0.87
18	133028	1	Bearing Sleeve	1.38
19	133078	1	Handle (for ECC-125)	6.32
20	133050	1	Woodruff Key	0.85
21	133051	1	Snap Ring (M8)	0.29
22	133030	1	Air Bridge	1.59
23	133025	1	Bearing 608-2RZ	10.39
24	133024	1	Insulation Disc	0.88
25	133439	1	Armature 110V	80.00
25	133012	1	Armature 220V	80.00
26	133026	1	Bearing Cover	0.45
27	133027	1	Bearing 629-2RZ	10.05
28	133048	1	Gear (Small)	15.25
29	133460	1	Self-tapping Screw 3.9x16	0.25
30	133493	1	Fan Case -Left	4.74
31	133505	1	Cap Screw M5 x 10	0.88
32	133497	1	Fan Case -Right	4.74
33	133531	1	Dust Gate	3.52
34	133530	1	Anti-Back-Flow Flap	2.13
35	133047	1	Cable Sleeve	1.91
36	133452	1	Rated Plate 110V	0.81
36	133547	1	Rated Plate 220V	0.81
37	133475	1	Breaker Assembly (w/cord) 110V	33.20
37	133546	1	Breaker Assembly (w/cord) 220V	33.20
38	133474	1	Cord (w/o breaker) 110V	26.47
39	133533	1	Dust Hose	36.43
40	133532	1	Dust Bag Holder	4.27
42	133544	1	Dust Bag w/strap (17"x13-1/2"x12")	19.03
43	133503	1	Pulley (Outside) 21mm OD LHT Fan	11.50
44	133502	1	Felt Rings D19xD12xT2	1.61
45	133492	1	Bearing 698 2RS	14.47
46	133498	1	Spacer D12xD8.5x4T	4.41
47	133511	1	Knob Bolt	0.95
48	133500	1	Bearing Housing	18.12
50	133508	1	Outer Belt	15.94
51	133488	1	Pulley (Outside) 24mm OD RHT	11.55
52	133495	1	Fan	5.12
55	133496	1	Fan Shaft	9.65
56	133486	1	Housing Adapter	12.80
57	133483	1	Main Housing	36.64
58	801086	1	Side Handle (for AWS-125/ECC-125)	12.08
59	133522	1	Screws M4x15	0.81
60	133490	1	Pulley (Inside) 18mm OD RHT	11.32
63	133487	1	Pulley Shaft	10.60
64	133513	1	Screw M4x25	0.95
65	133545	1	Screw M5x40	0.95
66	133386	1	Gear Housing	17.32
67	133058	1	Gear (Big)	18.05
68	133066	1	Needle Bearing Bk 0810	10.15
69	133368	1	Gear Housing	15.98
70	133067	1	O-Ring (25.5x2)	0.39
71	133512	1	Screw M5x15	1.17
72	133529	1	Sleeve	4.67
73	133510	1	Outer Cover	3.26
74	133053	1	Bearing 6201-2RS	16.32
75	133060	1	Screw Cap	3.18
76	133062	1	O-Ring (18x2.5)	0.40
77	133481	1	Spindle (for ECC-125)	16.39
78	133506	1	Pulley (Inside) 36mm OD Spindle	10.06
79	133509	1	Inner Belt	17.42
80	133514	1	Inner Cover	1.91
81	133515	1	Screw M5x30 (use Part No. 133513)	4.08
82	133521	1	Side Cover	10.42
83	133519	1	Flange Bolt	9.36
84	133518	1	Flange Outer (for ECC-125)	5.24
85	133516	1	Flange Inner (for ECC-125)	12.14
86	133071	1	Flat Washer M6	0.31
87	133084	1	Wing Screw	1.71
88	133269	1	Washer For Ruler	1.12
89	133528	1	Guide Pin	5.82
90	130798	1	Retainer Ring-E	1.41
91	133527	1	TT Ruler Guide (for ECC-125)	16.04
92	133523	1	Base Plate Assembly	29.03
93	133072	1	Spring Washer (M6)	0.32
95	133535	1	Wrench 19mm (for ECC-125)	5.52
96	133534	1	Hexagon Ring Spanner	1.60
97	133369	1	Felt Strip Set	2.45
98	133615	1	Felt Rings D26.6xD12.5xT2	1.86
99	133616	1	Dust Shield D43xD23xT0.35	1.86
100	133696	1	Inner Cover Gasket (for ECC-125)	2.44
998	133536	1	BMC (Blow Mold Case) for ECC-125	57.95
999	801392	1	Dust Bag for Carriage (16"x13-1/2"x8")	19.03

SPARE PARTS

DRAWING NO.	PART NO.	VERSION	DESCRIPTION	PRICE$
1	133080	1	Screw M5x40	1.64
2	130031	1	Self-tapping Screw 3.9x19	0.49
3	133033	1	Carbon Brush (2 pc set)	12.55
4	133032	1	Brush Cap	2.23
5	130618	1	Block Terminal	0.88
6	133040	1	Wire Terminal	0.43
7	133086	1	Cable Clamp	0.40
8	133042	1	Insulation Pipe	0.57
9	133034	1	Brush Terminal Assembly	3.28
10	133436	1	Field Coil 110V	66.90
10	133004	1	Field Coil 220V	66.90
11	133551	1	Hook & Loop Strap	3.57
12	133003	1	Rear Motor Housing (Blue)	23.91
13	133041	1	Cable Clip	0.59
14	133044	1	Rubber Switch Cover	1.12
15	133043	1	Switch (with Screw)	25.36
16	133392	1	Condenser Assembly	1.86
17	133029	1	Self-tapping Screw 4.8x65	0.87
18	133028	1	Bearing Sleeve	1.38
19	133078	1	Handle (for ECC-125)	6.32
20	133050	1	Woodruff Key	0.85
21	133051	1	Snap Ring (M8)	0.29
22	133030	1	Air Bridge	1.59
23	133025	1	Bearing 608-2RZ	10.39
24	133024	1	Insulation Disc	0.88
25	133439	1	Armature 110V	80.00
25	133012	1	Armature 220V	80.00
26	133026	1	Bearing Cover	0.45
27	133027	1	Bearing 629-2RZ	10.05
28	133048	1	Gear (Small)	15.25
29	133460	1	Self-tapping Screw 3.9x16	0.25
30	133493	1	Fan Case -Left	4.74
31	133505	1	Cap Screw M5 x 10	0.88
32	133497	1	Fan Case -Right	4.74
33	133531	1	Dust Gate	3.52
34	133530	1	Anti-Back-Flow Flap	2.13
35	133047	1	Cable Sleeve	1.91
36	133452	1	Rated Plate 110V	0.81
36	133547	1	Rated Plate 220V	0.81
37	133475	1	Breaker Assembly (w/cord) 110V	33.20
37	133546	1	Breaker Assembly (w/cord) 220V	33.20
38	133474	1	Cord (w/o breaker) 110V	26.47
39	133533	1	Dust Hose	36.43
40	133532	1	Dust Bag Holder	4.27
42	133544	1	Dust Bag w/strap (17"x13-1/2"x12")	19.03
43	133503	1	Pulley (Outside) 21mm OD LHT Fan	11.50
44	133502	1	Felt Rings D19xD12xT2	1.61
45	133492	1	Bearing 698 2RS	14.47
46	133498	1	Spacer D12xD8.5x4T	4.41
47	133511	1	Knob Bolt	0.95
48	133500	1	Bearing Housing	18.12
50	133508	1	Outer Belt	15.94
51	133488	1	Pulley (Outside) 24mm OD RHT	11.55
52	133495	1	Fan	5.12
55	133496	1	Fan Shaft	9.65
56	133486	1	Housing Adapter	12.80
57	133483	1	Main Housing	36.64
58	801086	1	Side Handle (for AWS-125/ECC-125)	12.08
59	133522	1	Screws M4x15	0.81
60	133490	1	Pulley (Inside) 18mm OD RHT	11.32
63	133487	1	Pulley Shaft	10.60
64	133513	1	Screw M4x25	0.95
65	133545	1	Screw M5x40	0.95
66	133386	1	Gear Housing	17.32
67	133058	1	Gear (Big)	18.05
68	133066	1	Needle Bearing Bk 0810	10.15
69	133368	1	Gear Housing	15.98
70	133067	1	O-Ring (25.5x2)	0.39
71	133512	1	Screw M5x15	1.17
72	133529	1	Sleeve	4.67
73	133510	1	Outer Cover	3.26
74	133053	1	Bearing 6201-2RS	16.32
75	133060	1	Screw Cap	3.18
76	133062	1	O-Ring (18x2.5)	0.40
77	133481	1	Spindle (for ECC-125)	16.39
78	133506	1	Pulley (Inside) 36mm OD Spindle	10.06
79	133509	1	Inner Belt	17.42
80	133514	1	Inner Cover	1.91
81	133515	1	Screw M5x30 (use Part No. 133513)	4.08
82	133521	1	Side Cover	10.42
83	133519	1	Flange Bolt	9.36
84	133518	1	Flange Outer (for ECC-125)	5.24
85	133516	1	Flange Inner (for ECC-125)	12.14
86	133071	1	Flat Washer M6	0.31
87	133084	1	Wing Screw	1.71
88	133269	1	Washer For Ruler	1.12
89	133528	1	Guide Pin	5.82
90	130798	1	Retainer Ring-E	1.41
91	133527	1	TT Ruler Guide (for ECC-125)	16.04
92	133523	1	Base Plate Assembly	29.03
93	133072	1	Spring Washer (M6)	0.32
95	133535	1	Wrench 19mm (for ECC-125)	5.52
96	133534	1	Hexagon Ring Spanner	1.60
97	133369	1	Felt Strip Set	2.45
98	133615	1	Felt Rings D26.6xD12.5xT2	1.86
99	133616	1	Dust Shield D43xD23xT0.35	1.86
100	133696	1	Inner Cover Gasket (for ECC-125)	2.44
998	133536	1	BMC (Blow Mold Case) for ECC-125	57.95
999	801392	1	Dust Bag for Carriage (16"x13-1/2"x8")	19.03

DOCUMENTATION

Manual :	ECC-125_manual.pdf
Parts-Schematic :	ECC-125_Parts-Schematic.pdf
Flyer :	Grout-Removal-System_flyer.pdf
