Alpha Professional Tools® :: ECG-900/914 Spare Parts

ECG-900/914 Spare Parts

DRAWING NO.	PART NO.	VERSION	DESCRIPTION	PRICE
4	400004	1	Screw Nut M4	0.16
5	400005	1	Flat Washer 4x12x1.2	0.16
6	400006	1	Blade Guard 6"	25.20
7	400007	1	Screw M4x8	0.16
8	400008	1	Water Shield	4.11
9	400009	1	Spindle 5/8"-11 UNC	27.14
10	400010	1	Dust Cover	0.85
11	400011	1	Screw M5x16	0.31
12	400012	1	Front Cover	16.52
13	400013	1	Ball Bearing 6203	7.06
14	400014	1	Circlip 40	0.31
15	400015	1	Large Spiral Gear	12.80
16	400016	1	Screw M4x6	0.16
17	400017	1	Oil Block	0.16
18	400018	1	Oil Snap Guage	0.31
19	400019	1	Self Lock Pin	0.85
20	400020	1	Ball Bearing 6000	5.74
21	400021	1	Oil Seal 10x22x5	1.16
22	400022	1	Screw M5X12	0.16
23	400023	1	Gear Box	63.75
24	400024	1	Screw M5X25	0.16
25	400025	1	Ring 14x2	0.47
26	400026	1	Self Lock Spring	0.16
27	400027	1	Self Lock Cap	0.31
28	400028	1	Copper Sleeve 4x56	1.94
29	400029	1	Coupling Seat	3.26
30	400030	1	Screw M4x18	0.16
31	400031	1	Hand valve switch BUL8-01	12.10
32	400032	1	Screw ST5x40	0.16
33	400033	1	Screw Nut M10x1x8.2	0.47
34	400034	1	Small Spiral Gear	8.84
35	400035	1	Rectangular Ring 35x38x3.5	0.62
36	400036	1	Ball Bearing (6202)	6.36
37	400037	1	Aluminum Bearing Guard	2.33
38	400038	1	Armature(110V)	136.95
39	400039	1	Insulation Washer	0.62
40	400040	1	Bearing Cover	3.26
41	400041	1	Air Deflector	1.01
42	400042	1	Brush Cap	0.62
43	400043	1	Screw ST4x12	0.16
44	400044	1	Rating Plate	0.47
45	400045	1	Carbon Brush Set (2pc)	4.19
46	400046	1	Brush Holder 6.3x16	3.26
47	400047	1	Screw ST4x10	0.16
48	400048	1	Coil Spring	1.16
49	400049	1	Screw ST5x80	0.31
50	400050	1	Screw ST4x30	0.16
51	400051	1	Axle sleeve 4.3x8x12	1.01
52	400052	1	Water Pipe Buckle	0.85
53	400053	1	Screw ST5x25	0.16
54	400054	1	Screw ST5x60	0.31
55	400055	1	Axle sleeve 5.3x9x25	1.63
56	400056	1	Right Handle	10.39
57	400057	1	Screw ST4x18	0.16
58	400058	1	Field Coil (110v)	119.81
59	400059	1	Motor Housing	16.98
60	400060	1	Rotary Knob	1.01
61	400061	1	Spring	0.16
62	400062	1	Brand Plate	0.47
63	400063	1	Screw ST4x14	0.16
64	400064	1	Cord Anchor	1.63
65	400065	1	Switch	20.09
66	400066	1	Left Handle	10.39
67	400067	1	Cord Sleeve	0.85

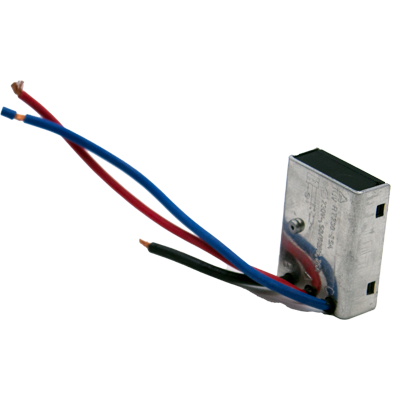

68	400068	1	Soft Start(110V)	20.63
69	400069	1	Electric Cord w/GFCI	149.28
70	400070	1	Splash Guard	12.56
71	400071	1	Hex. Wrench 6	1.01
72	400072	1	D-Handle	7.76
73	400073	1	Open self-winding pipe	12.41
74	400074	1	Side Handle M14	14.42
75	400075	1	Hex. Bolt M14x35	0.85
76	400076	1	Spring Washer 14	0.16
77	400077	1	Flat Washer 14	0.16
78	400078	1	Handle Bracket	13.88

SPARE PARTS

DRAWING NO.	PART NO.	VERSION	DESCRIPTION	PRICE$
4	400004	1	Screw Nut M4	0.16
5	400005	1	Flat Washer 4x12x1.2	0.16
6	400006	1	Blade Guard 6"	25.20
7	400007	1	Screw M4x8	0.16
8	400008	1	Water Shield	4.11
9	400009	1	Spindle 5/8"-11 UNC	27.14
10	400010	1	Dust Cover	0.85
11	400011	1	Screw M5x16	0.31
12	400012	1	Front Cover	16.52
13	400013	1	Ball Bearing 6203	7.06
14	400014	1	Circlip 40	0.31
15	400015	1	Large Spiral Gear	12.80
16	400016	1	Screw M4x6	0.16
17	400017	1	Oil Block	0.16
18	400018	1	Oil Snap Guage	0.31
19	400019	1	Self Lock Pin	0.85
20	400020	1	Ball Bearing 6000	5.74
21	400021	1	Oil Seal 10x22x5	1.16
22	400022	1	Screw M5X12	0.16
23	400023	1	Gear Box	63.75
24	400024	1	Screw M5X25	0.16
25	400025	1	Ring 14x2	0.47
26	400026	1	Self Lock Spring	0.16
27	400027	1	Self Lock Cap	0.31
28	400028	1	Copper Sleeve 4x56	1.94
29	400029	1	Coupling Seat	3.26
30	400030	1	Screw M4x18	0.16
31	400031	1	Hand valve switch BUL8-01	12.10
32	400032	1	Screw ST5x40	0.16
33	400033	1	Screw Nut M10x1x8.2	0.47
34	400034	1	Small Spiral Gear	8.84
35	400035	1	Rectangular Ring 35x38x3.5	0.62
36	400036	1	Ball Bearing (6202)	6.36
37	400037	1	Aluminum Bearing Guard	2.33
38	400038	1	Armature(110V)	136.95
39	400039	1	Insulation Washer	0.62
40	400040	1	Bearing Cover	3.26
41	400041	1	Air Deflector	1.01
42	400042	1	Brush Cap	0.62
43	400043	1	Screw ST4x12	0.16
44	400044	1	Rating Plate	0.47
45	400045	1	Carbon Brush Set (2pc)	4.19
46	400046	1	Brush Holder 6.3x16	3.26
47	400047	1	Screw ST4x10	0.16
48	400048	1	Coil Spring	1.16
49	400049	1	Screw ST5x80	0.31
50	400050	1	Screw ST4x30	0.16
51	400051	1	Axle sleeve 4.3x8x12	1.01
52	400052	1	Water Pipe Buckle	0.85
53	400053	1	Screw ST5x25	0.16
54	400054	1	Screw ST5x60	0.31
55	400055	1	Axle sleeve 5.3x9x25	1.63
56	400056	1	Right Handle	10.39
57	400057	1	Screw ST4x18	0.16
58	400058	1	Field Coil (110v)	119.81
59	400059	1	Motor Housing	16.98
60	400060	1	Rotary Knob	1.01
61	400061	1	Spring	0.16
62	400062	1	Brand Plate	0.47
63	400063	1	Screw ST4x14	0.16
64	400064	1	Cord Anchor	1.63
65	400065	1	Switch	20.09
66	400066	1	Left Handle	10.39
67	400067	1	Cord Sleeve	0.85
68	400068	1	Soft Start(110V)	20.63
69	400069	1	Electric Cord w/GFCI	149.28
70	400070	1	Splash Guard	12.56
71	400071	1	Hex. Wrench 6	1.01
72	400072	1	D-Handle	7.76
73	400073	1	Open self-winding pipe	12.41
74	400074	1	Side Handle M14	14.42
75	400075	1	Hex. Bolt M14x35	0.85
76	400076	1	Spring Washer 14	0.16
77	400077	1	Flat Washer 14	0.16
78	400078	1	Handle Bracket	13.88

DOCUMENTATION

Manual :	ECG-900-914_v1124_manual.pdf
Flyer :	NewFromAlpha2025.pdf
Flyer :	ECG-900_flyer.pdf
