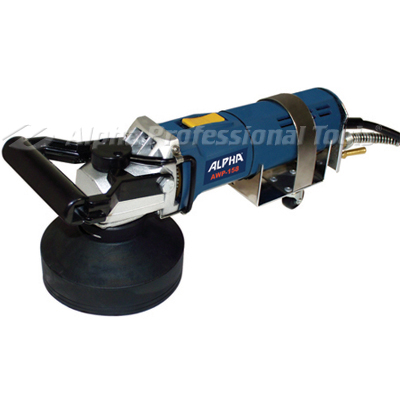

AWP-158 Spare Parts (Discontinued)

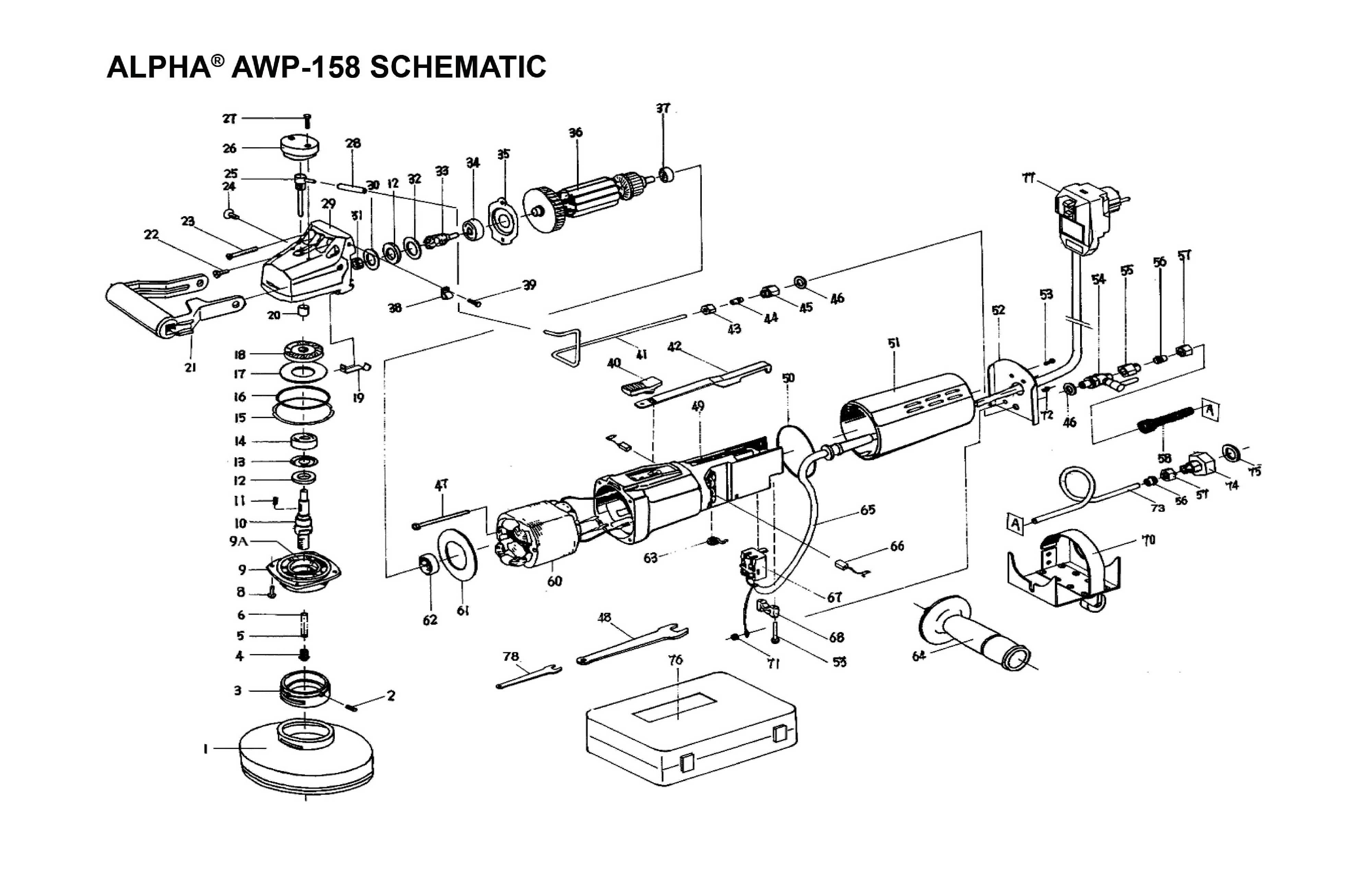

DRAWING NO.	PART NO.	VERSION	DESCRIPTION	PRICE
1	658-112	1	Splash Guard	6.97
2	AWP-02	1	Set Screw (M5x4)	0.46
3	AWP-03	1	Ring Adapter	5.01
4	AWP-04	1	Water Jet	5.01
5	AWP-05	1	Supporting Ring	0.78
6	AWP-06	1	Gasket	0.78
8	AWP-08	1	Hex Head Screw M4x12	3.76
9a	AWP-34-1	1	Rubber Plug	0.91
9b	AWP-09	1	Gear Cap	4.84
10a	AWP-10A	1	Spindle 5/8”-11	12.14
10b	AWP-10B	1	Spindle M14-2	12.14
11	AWP-11	1	Key	1.37
12	AWP-12	1	Sealing Ring	1.52
13	AWP-13	1	Ring Cover	0.40
14	AWP-14	1	Ball Bearing 6001ZZ	17.04
15	AWP-15	1	Distance Ring	2.03
16	AWP-16	1	Sealing Ring 48x1.2	0.86
17	AWP-17	1	Spring Washer 25mm OD	1.37
18	AWP-18	1	Crown Wheel	21.24
19	AWP-19	1	Water Line Clip	0.71
20	AWP-20	1	Bushing Brass 13mm OD	0.82
21	AWP-21	1	C-Shaped Handle for AWP-158	39.05
22	AWP-22	1	Screw M8x4	1.21
23	AWP-23	1	Self-Tapping Screw 3.9x30	1.21
24	AWP-24	1	Screw M8x16	1.83
25	AWP-25	1	Center Water Feed Tube	5.01
26	AWP-26	1	Center Water Feed Adapter	2.43
27	AWP-27	1	Screw M4x25	0.79
28	AWP-28	1	Hose 8x5x4	0.51
29	AWP-29	1	Gear Case	31.38
31	AWP-31	1	Threaded Bushing	0.25
32	AWP-32	1	Washer 25.5mm O.D.	0.19
33	AWP-33	1	Pinion Gear	29.98
34	AWP-34	1	Ball Bearing 6000DDW	12.08
35	AWP-35	1	Bearing Cover	2.21
36c	AWP-36C	1	Armature Assembly - 110V	138.99
36d	AWP-36D	1	Armature Assembly - 220V	138.99
37	AWP-37	1	Ball Bearing 607DDW	13.77
38	AWP-38	1	Water Line Clip/small	1.19
39	AWP-39	1	Screw M4x8	0.72
40	AWP-40	1	Switch Lever	1.55
41	AWP-41	1	Water Pipe	5.71
42	AWP-42	1	Switch Rod	0.89
43	AWP-43	1	Compression Nut	4.44
44	AWP-44	1	Compression Ring	3.92
45	AWP-45	1	Pipe Adapter	4.76
46	AWP-46	1	Gasket	0.49
47	AWP-47	1	Self-Tapping Screw 3.9x60	0.56
48	AWP-48	1	26mm Stop Spanner	4.78
49	AWP-49	1	Motor Case With Brush Holders	30.68
50	AWP-50	1	Sealing Ring 61x1.2	1.31
51	AWP-51	1	Cover	7.28
52	AWP-52	1	Water Line Mounting Plate	4.10
53	AWP-53	1	Self-Tapping Screw 3.9X20	0.49
54	AWP-54	1	Water Valve (for AWP-158)	17.30
55	AWP-55	1	Water Fitting Adapter	4.76
56	AWP-56	1	Compression Ring	4.16
57	AWP-57	1	Compression Nut	4.71
58	AWP-58	1	Hose Protector	1.87
60a	AWP-60A	1	Field Assembly - 110V	59.27
60b	AWP-60B	1	Field Assembly - 220V	59.27
62	AWP-62	1	Bearing Ring	0.85
63	AWP-63	1	Torsion Spring	1.67
64	AWP-64	1	Handle B (Side Handle)	12.35
65a	AWP-65A	1	Cord With GFCI - 110V	63.69
65b	AWP-65B	1	Cord With GFCI - 220V	63.69
66	AWP-66	1	Carbon Brush (2 pc set)	11.51
67	AWP-67	1	Switch	6.07
68	AWP-68	1	Strain Relief	0.40
70	AWP-69	1	Flat Polishing Caster	CALL
71	AWP-71	1	Nut M4	0.14
72	AWP-72	1	Screw M4x6	0.09
73	133229	1	Water Hose 8mm ODx10ft (3m)	13.25
74	AWP-74	1	Hose Coupling	15.09
75	AWP-75	1	Gasket 24x14x3	0.42
76	AWP-76	1	BMC (Blow Mold Case) for AWP-158	24.28
77a	AWP-77A	1	GFCI 110V	53.99
77b	AWP-77B	1	GFCI 220V	53.99
78	AWP-78	1	Wrench 14mm	3.28

SPARE PARTS

DRAWING NO.	PART NO.	VERSION	DESCRIPTION	PRICE$
1	658-112	1	Splash Guard	6.97
2	AWP-02	1	Set Screw (M5x4)	0.46
3	AWP-03	1	Ring Adapter	5.01
4	AWP-04	1	Water Jet	5.01
5	AWP-05	1	Supporting Ring	0.78
6	AWP-06	1	Gasket	0.78
8	AWP-08	1	Hex Head Screw M4x12	3.76
9a	AWP-34-1	1	Rubber Plug	0.91
9b	AWP-09	1	Gear Cap	4.84
10a	AWP-10A	1	Spindle 5/8”-11	12.14
10b	AWP-10B	1	Spindle M14-2	12.14
11	AWP-11	1	Key	1.37
12	AWP-12	1	Sealing Ring	1.52
13	AWP-13	1	Ring Cover	0.40
14	AWP-14	1	Ball Bearing 6001ZZ	17.04
15	AWP-15	1	Distance Ring	2.03
16	AWP-16	1	Sealing Ring 48x1.2	0.86
17	AWP-17	1	Spring Washer 25mm OD	1.37
18	AWP-18	1	Crown Wheel	21.24
19	AWP-19	1	Water Line Clip	0.71
20	AWP-20	1	Bushing Brass 13mm OD	0.82
21	AWP-21	1	C-Shaped Handle for AWP-158	39.05
22	AWP-22	1	Screw M8x4	1.21
23	AWP-23	1	Self-Tapping Screw 3.9x30	1.21
24	AWP-24	1	Screw M8x16	1.83
25	AWP-25	1	Center Water Feed Tube	5.01
26	AWP-26	1	Center Water Feed Adapter	2.43
27	AWP-27	1	Screw M4x25	0.79
28	AWP-28	1	Hose 8x5x4	0.51
29	AWP-29	1	Gear Case	31.38
31	AWP-31	1	Threaded Bushing	0.25
32	AWP-32	1	Washer 25.5mm O.D.	0.19
33	AWP-33	1	Pinion Gear	29.98
34	AWP-34	1	Ball Bearing 6000DDW	12.08
35	AWP-35	1	Bearing Cover	2.21
36c	AWP-36C	1	Armature Assembly - 110V	138.99
36d	AWP-36D	1	Armature Assembly - 220V	138.99
37	AWP-37	1	Ball Bearing 607DDW	13.77
38	AWP-38	1	Water Line Clip/small	1.19
39	AWP-39	1	Screw M4x8	0.72
40	AWP-40	1	Switch Lever	1.55
41	AWP-41	1	Water Pipe	5.71
42	AWP-42	1	Switch Rod	0.89
43	AWP-43	1	Compression Nut	4.44
44	AWP-44	1	Compression Ring	3.92
45	AWP-45	1	Pipe Adapter	4.76
46	AWP-46	1	Gasket	0.49
47	AWP-47	1	Self-Tapping Screw 3.9x60	0.56
48	AWP-48	1	26mm Stop Spanner	4.78
49	AWP-49	1	Motor Case With Brush Holders	30.68
50	AWP-50	1	Sealing Ring 61x1.2	1.31
51	AWP-51	1	Cover	7.28
52	AWP-52	1	Water Line Mounting Plate	4.10
53	AWP-53	1	Self-Tapping Screw 3.9X20	0.49
54	AWP-54	1	Water Valve (for AWP-158)	17.30
55	AWP-55	1	Water Fitting Adapter	4.76
56	AWP-56	1	Compression Ring	4.16
57	AWP-57	1	Compression Nut	4.71
58	AWP-58	1	Hose Protector	1.87
60a	AWP-60A	1	Field Assembly - 110V	59.27
60b	AWP-60B	1	Field Assembly - 220V	59.27
62	AWP-62	1	Bearing Ring	0.85
63	AWP-63	1	Torsion Spring	1.67
64	AWP-64	1	Handle B (Side Handle)	12.35
65a	AWP-65A	1	Cord With GFCI - 110V	63.69
65b	AWP-65B	1	Cord With GFCI - 220V	63.69
66	AWP-66	1	Carbon Brush (2 pc set)	11.51
67	AWP-67	1	Switch	6.07
68	AWP-68	1	Strain Relief	0.40
70	AWP-69	1	Flat Polishing Caster	CALL
71	AWP-71	1	Nut M4	0.14
72	AWP-72	1	Screw M4x6	0.09
73	133229	1	Water Hose 8mm ODx10ft (3m)	13.25
74	AWP-74	1	Hose Coupling	15.09
75	AWP-75	1	Gasket 24x14x3	0.42
76	AWP-76	1	BMC (Blow Mold Case) for AWP-158	24.28
77a	AWP-77A	1	GFCI 110V	53.99
77b	AWP-77B	1	GFCI 220V	53.99
78	AWP-78	1	Wrench 14mm	3.28

DOCUMENTATION

Manual :	AWP-158_manual.pdf
Maint Card :	AWP-158_Maint.pdf
Parts-Schematic :	AWP-158_Parts-Schematic.pdf
